Finned Heat Exchanger Tube

Finned tubes, Turbulators, heat exchangers, coils,
U-bends, additive manufacturing and projects.

My Image
My Image

Heating

Cooling

Scroll

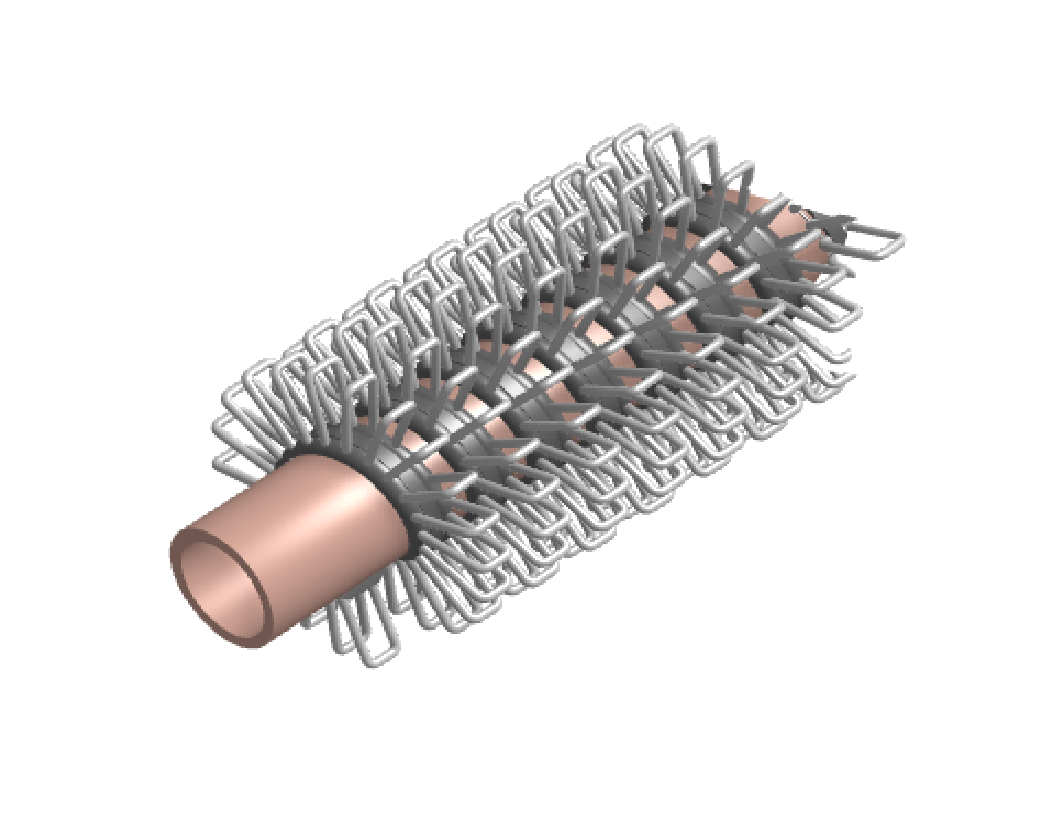

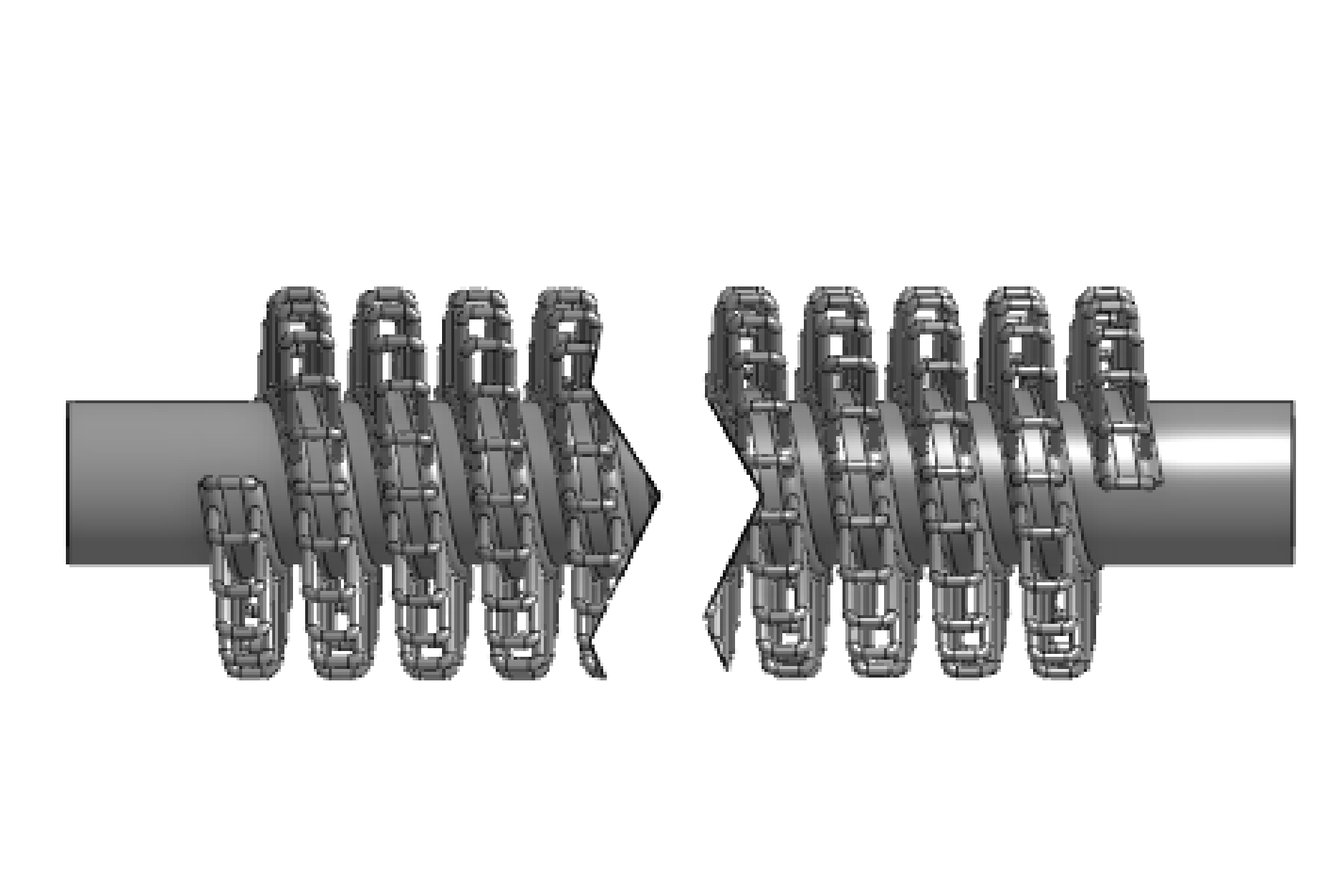

Copper Fin

My Image

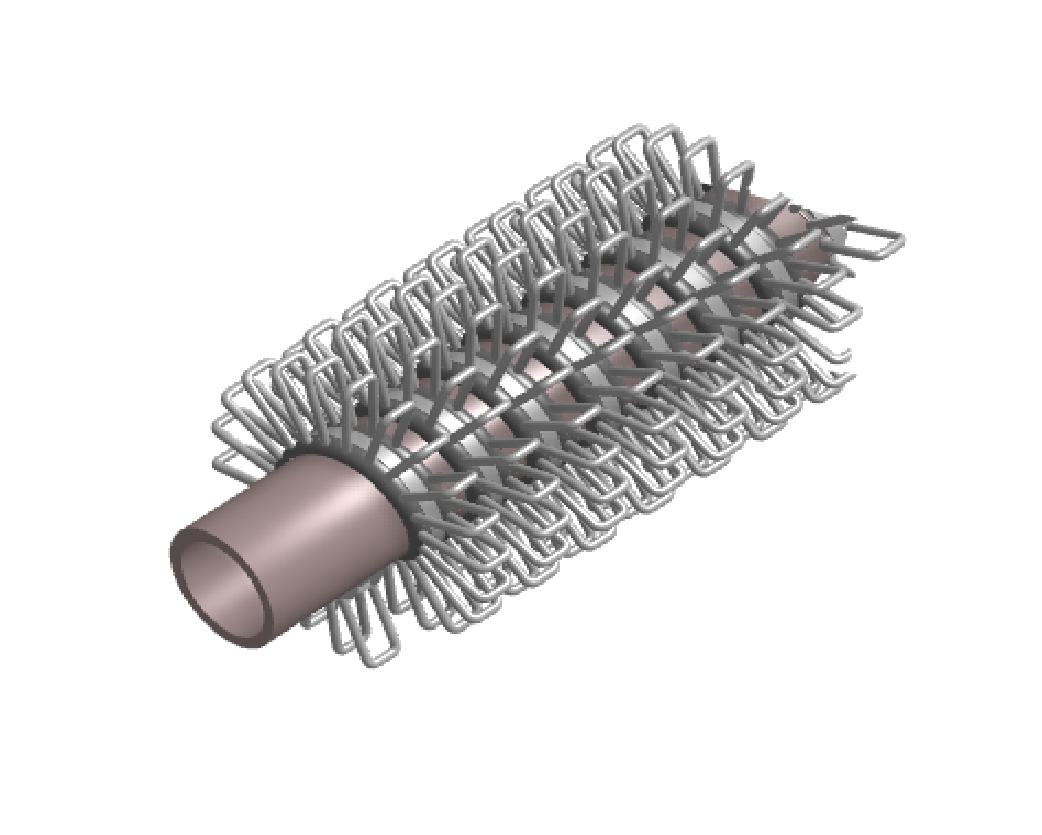

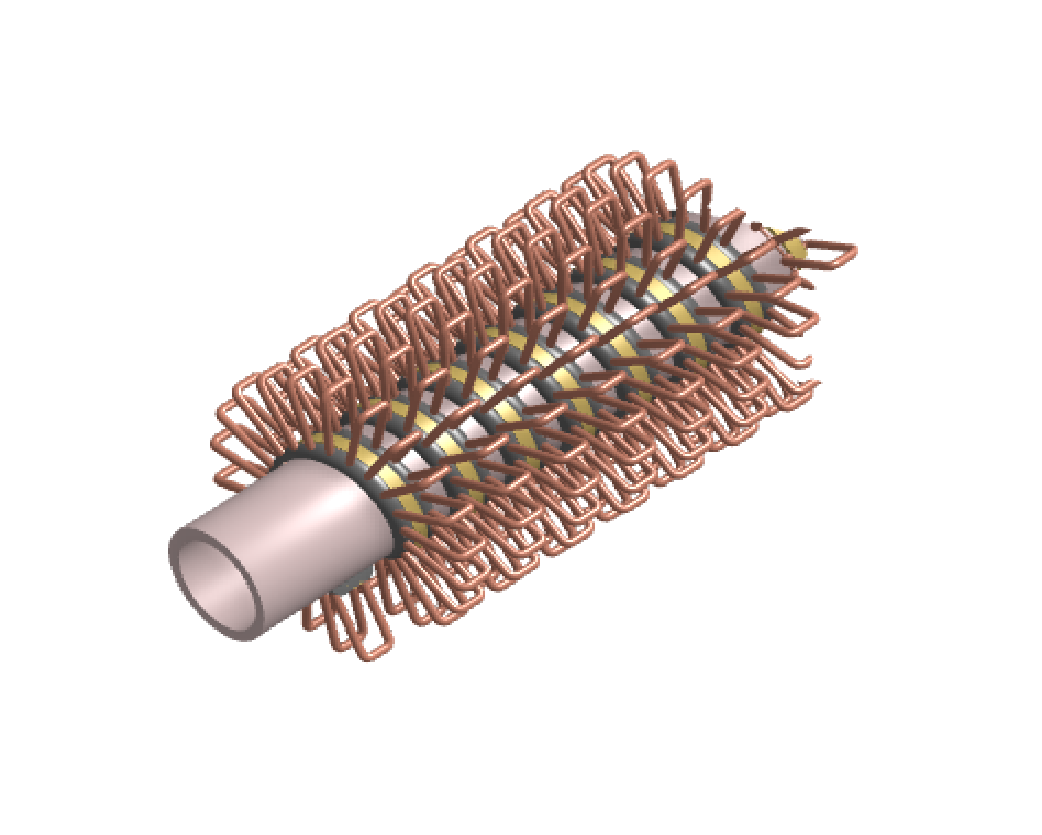

Carbon Steel Tube Specification

  • ASTM A179
  • ASTM A214
  • BS EN 10305-1 E235+C
  • Seamless or Welded tube.
  • All other specifications can be quoted.

Fin Specification

  • Copper Wire C101 CU-ETP DIN EN 13602/07.02
  • 0.711 mm (22 swg) Diameter
  • Solder Bonded
  • Maximum Temperature 180° Deg C (240° Deg Hi Temp Solder)
  • Minimum Temperature -40° Deg C

My Image

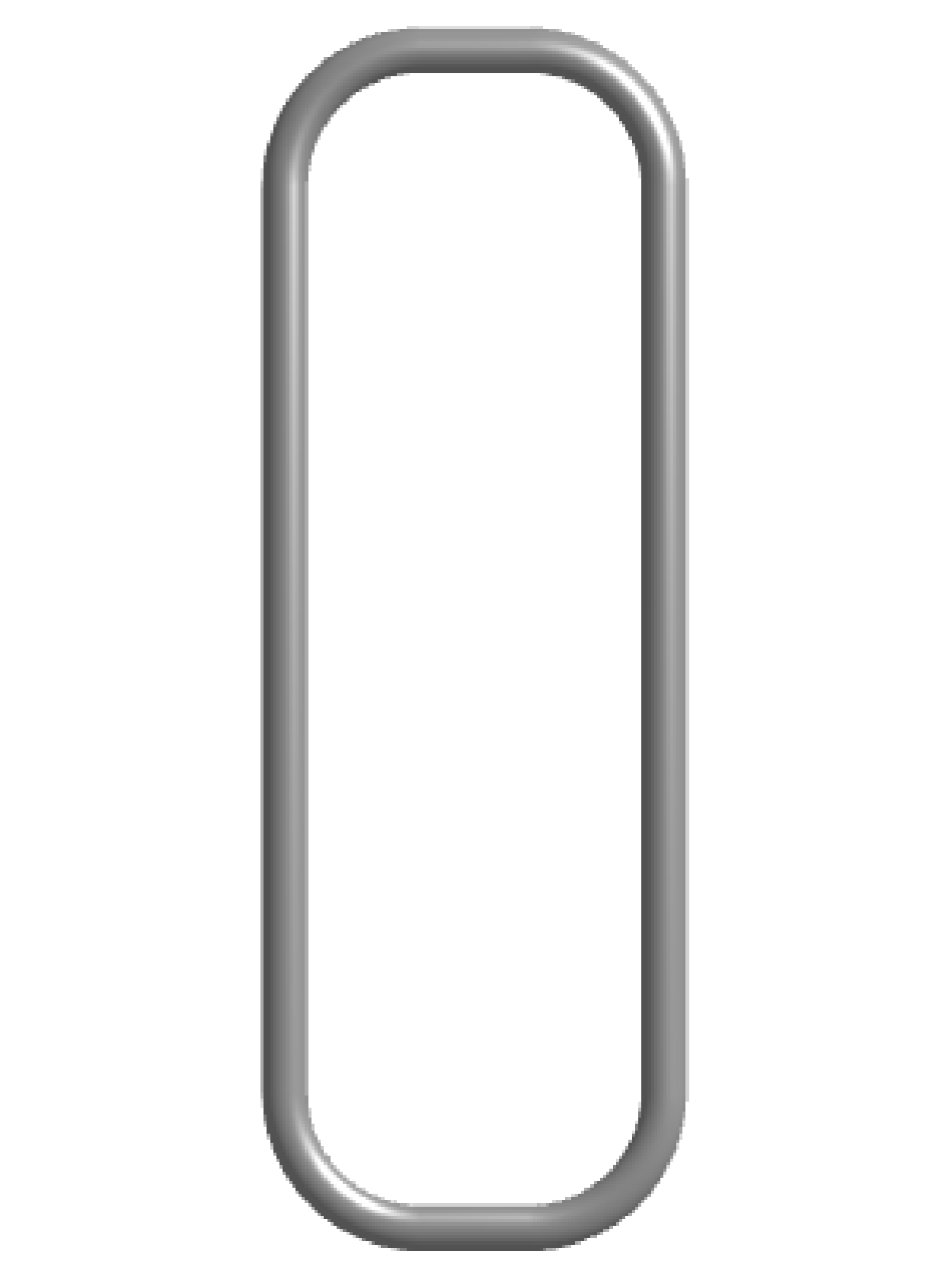

Fin Height
Description for the chart goes here
250
3.00
vertical_align_bottom Min
23.00
vertical_align_top Max
My Image

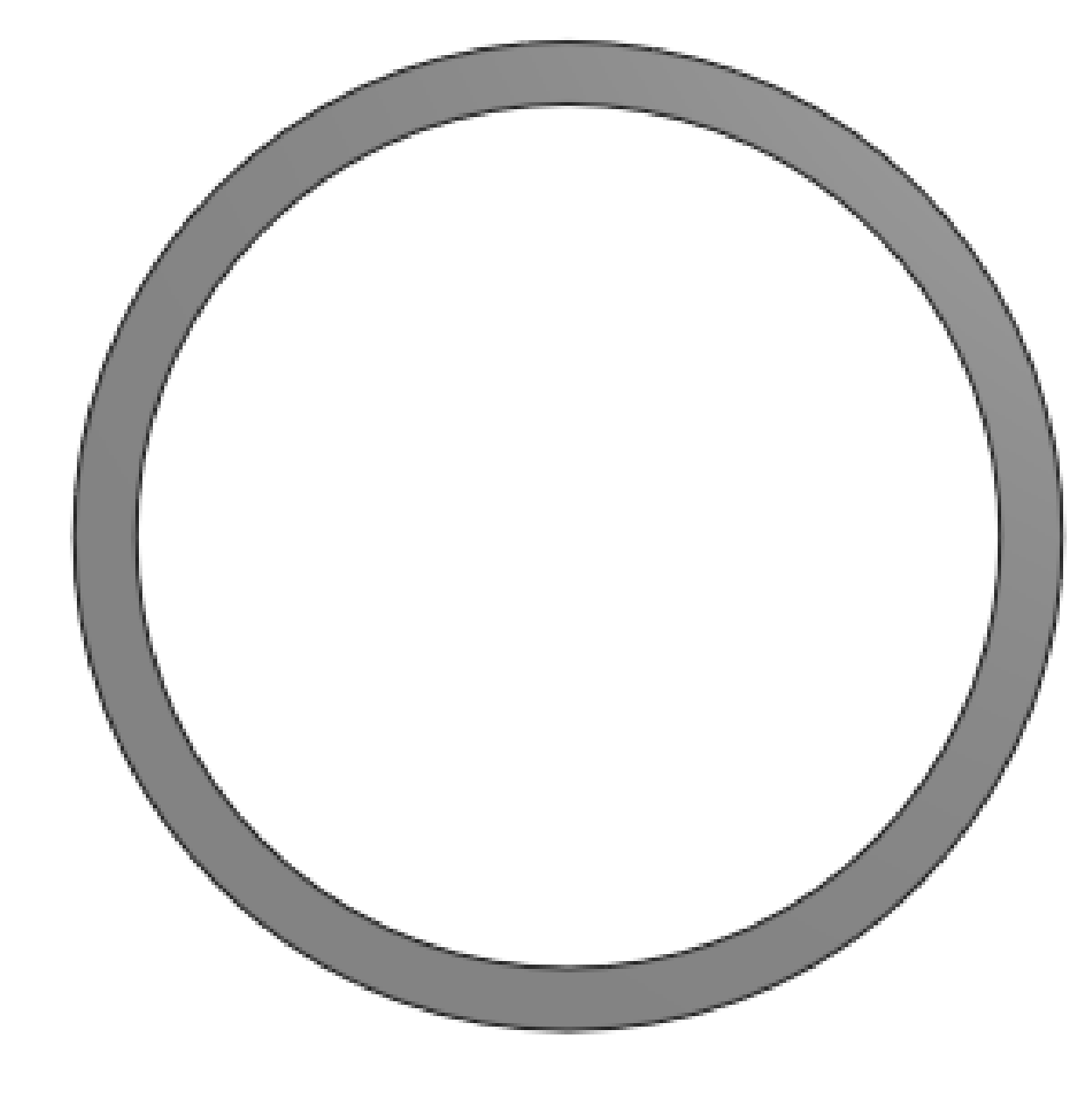

Tube Diameter
Description for the chart goes here
600
6.00
vertical_align_bottom Min
50.40
vertical_align_top Max
Tube Wall Thickness
Description for the chart goes here
40
0.51
vertical_align_bottom Min
3.66
vertical_align_top Max
My Image
Tube length
Description for the chart goes here
100
9.00
vertical_align_top Maximum Length
My Image

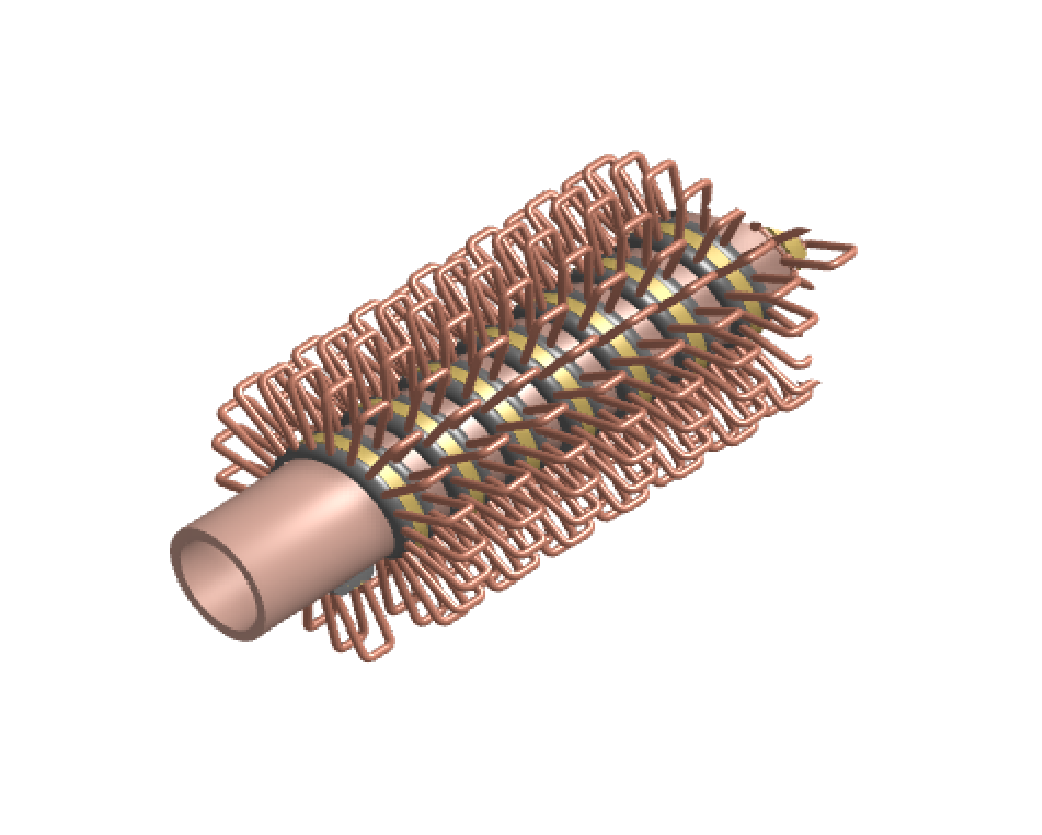

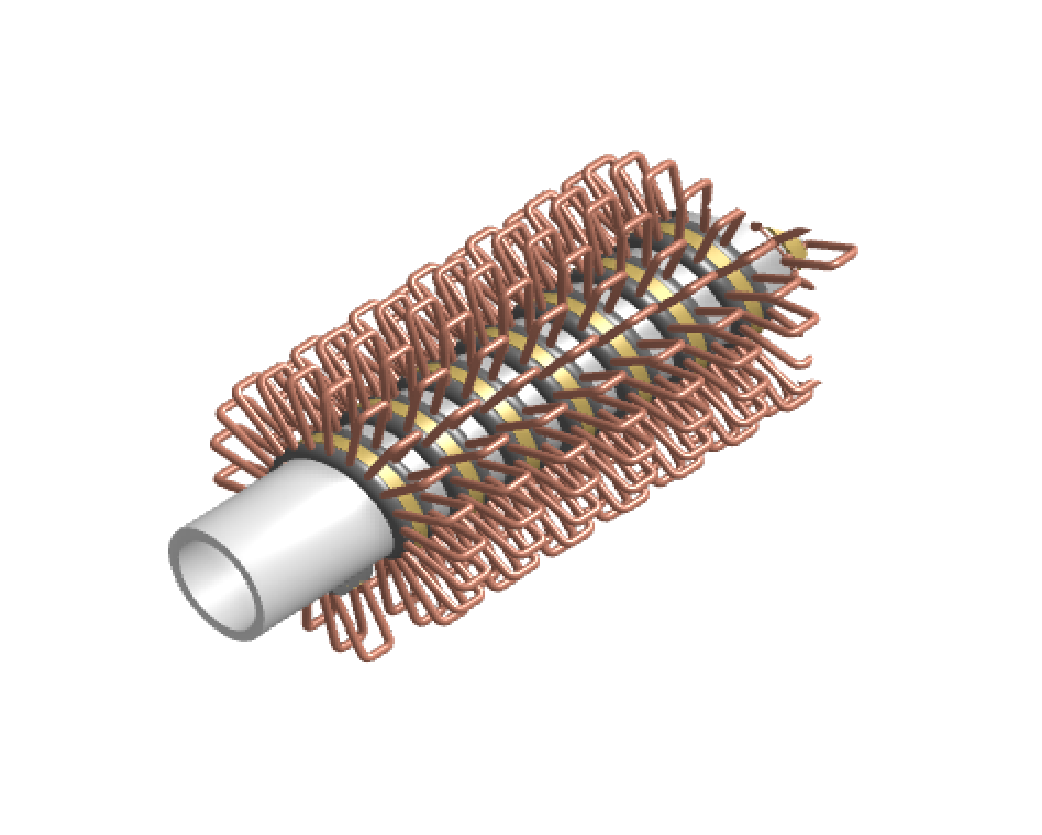

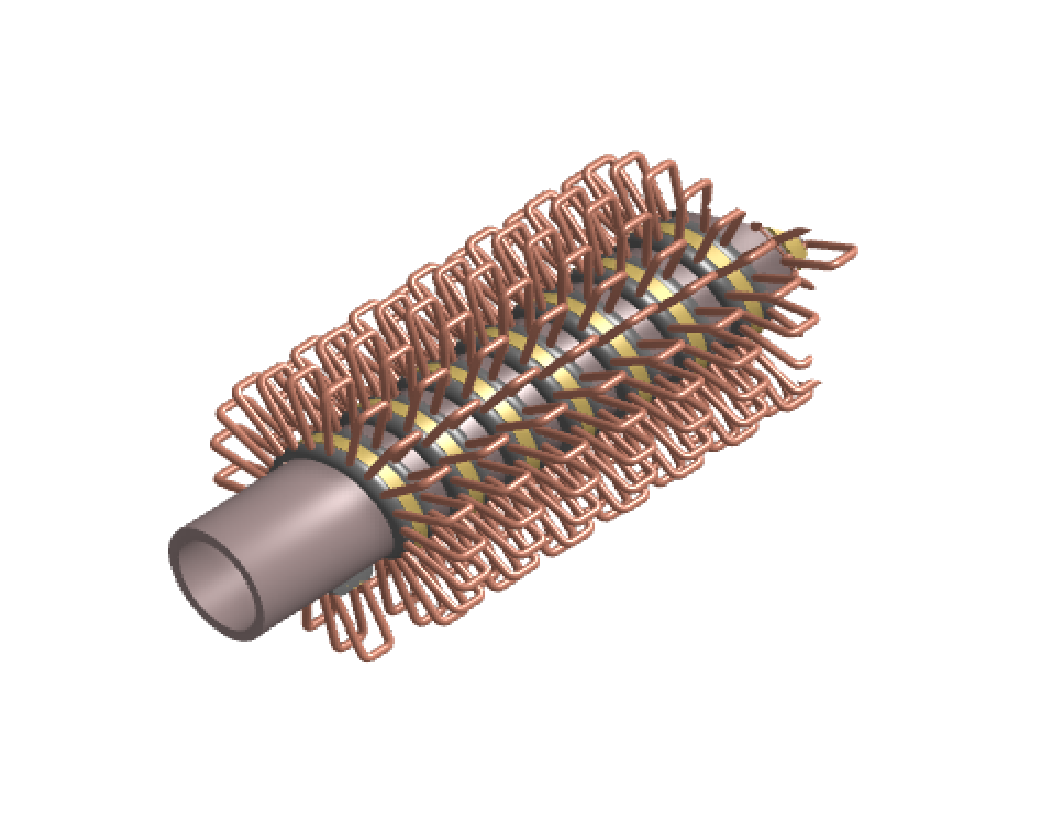

Copper Tube
Specification

  • C106 CW024A Cu-DHP C12200
  • Seamless
  • All other specifications can be quoted.

Fin Specification

  • Copper Wire C101 CU-ETP DIN EN 13602/07.02
  • 0.711 mm (22 swg) Diameter
  • Solder Bonded
  • Maximum Temperature 180° Deg C (240° Deg Hi Temp Solder)
  • Minimum Temperature -40° Deg C

My Image
Fin Height
Description for the chart goes here
250
3.00
vertical_align_bottom Min
23.00
vertical_align_top Max
My Image
Tube Diameter
Description for the chart goes here
600
6.00
vertical_align_bottom Min
50.40
vertical_align_top Max
Tube Wall Thickness
Description for the chart goes here
40
0.51
vertical_align_bottom Min
3.66
vertical_align_top Max
My Image
Tube length
Description for the chart goes here
100
9.00
vertical_align_top Maximum Length
My Image

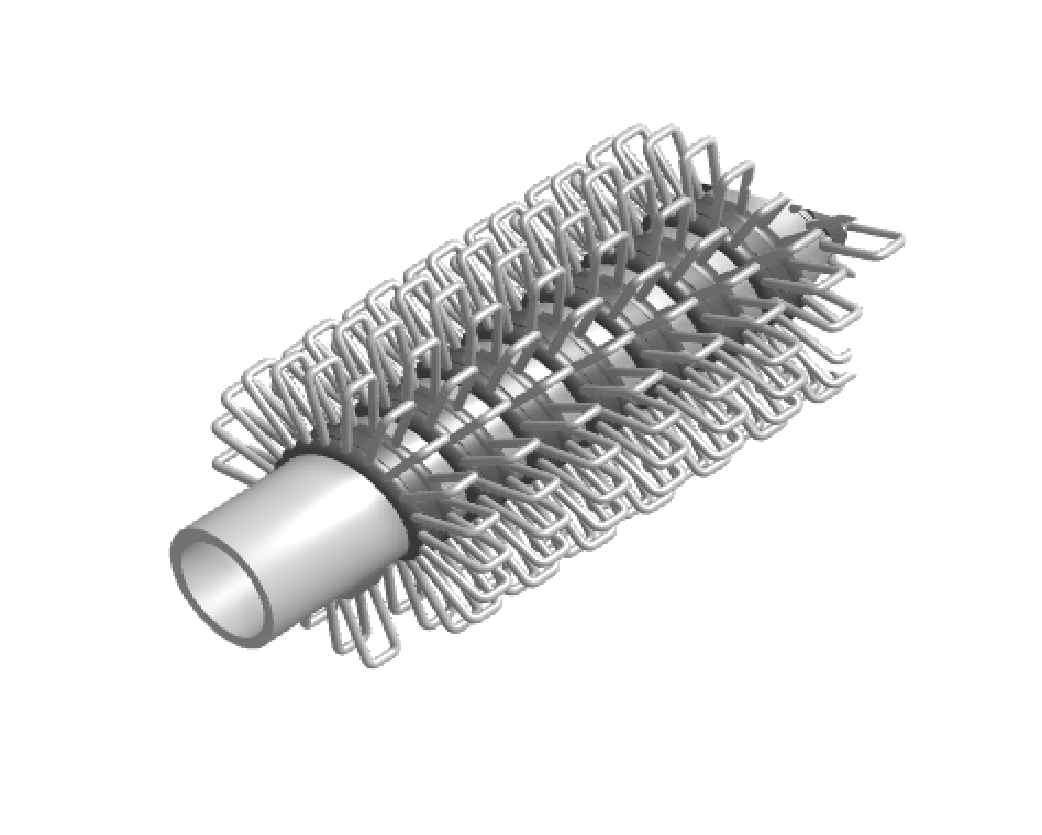

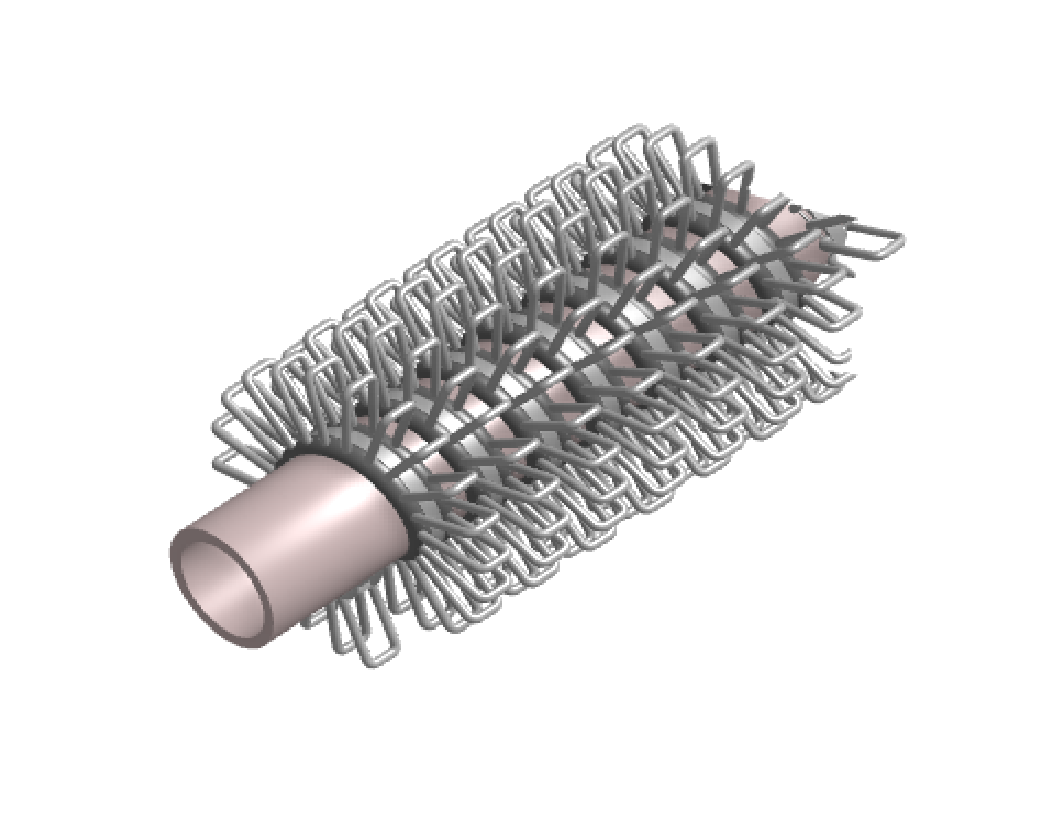

Stainless Steel Tube Specification

  • 304/304L S30400/3 EN14301/7
  • 316/316L S31600/3 EN 14401/04
  • Seamless or Welded tube.
  • All other specifications can be quoted.

Fin Specification

  • Copper Wire C101 CU-ETP DIN EN 13602/07.02
  • 0.711 mm (22 swg) Diameter
  • Solder Bonded
  • Maximum Temperature 180° Deg C (240° Deg Hi Temp Solder)
  • Minimum Temperature -40° Deg C

My Image
Fin Height
Description for the chart goes here
250
3.00
vertical_align_bottom Min
23.00
vertical_align_top Max
My Image
Tube Diameter
Description for the chart goes here
600
6.00
vertical_align_bottom Min
50.40
vertical_align_top Max
Tube Wall Thickness
Description for the chart goes here
40
0.51
vertical_align_bottom Min
3.66
vertical_align_top Max
My Image
Tube length
Description for the chart goes here
100
9.00
vertical_align_top Maximum Length
My Image

Copper Nickel Tube Specification

  • 90/10 Cu/Ni CW352H C70600
  • 70/30 Cu/Ni CW354H C71500
  • Seamless
  • All other specifications can be quoted.

Fin Specification

  • Copper Wire C101 CU-ETP DIN EN 13602/07.02
  • 0.711 mm (22 swg) Diameter
  • Solder Bonded
  • Maximum Temperature 180° Deg C (240° Deg Hi Temp Solder)
  • Minimum Temperature -40° Deg C

My Image
Fin Height
Description for the chart goes here
250
3.00
vertical_align_bottom Min
23.00
vertical_align_top Max
My Image
Tube Diameter
Description for the chart goes here
600
6.00
vertical_align_bottom Min
50.40
vertical_align_top Max
Tube Wall Thickness
Description for the chart goes here
40
0.51
vertical_align_bottom Min
3.66
vertical_align_top Max
My Image
Tube length
Description for the chart goes here
100
9.00
vertical_align_top Maximum Length
My Image

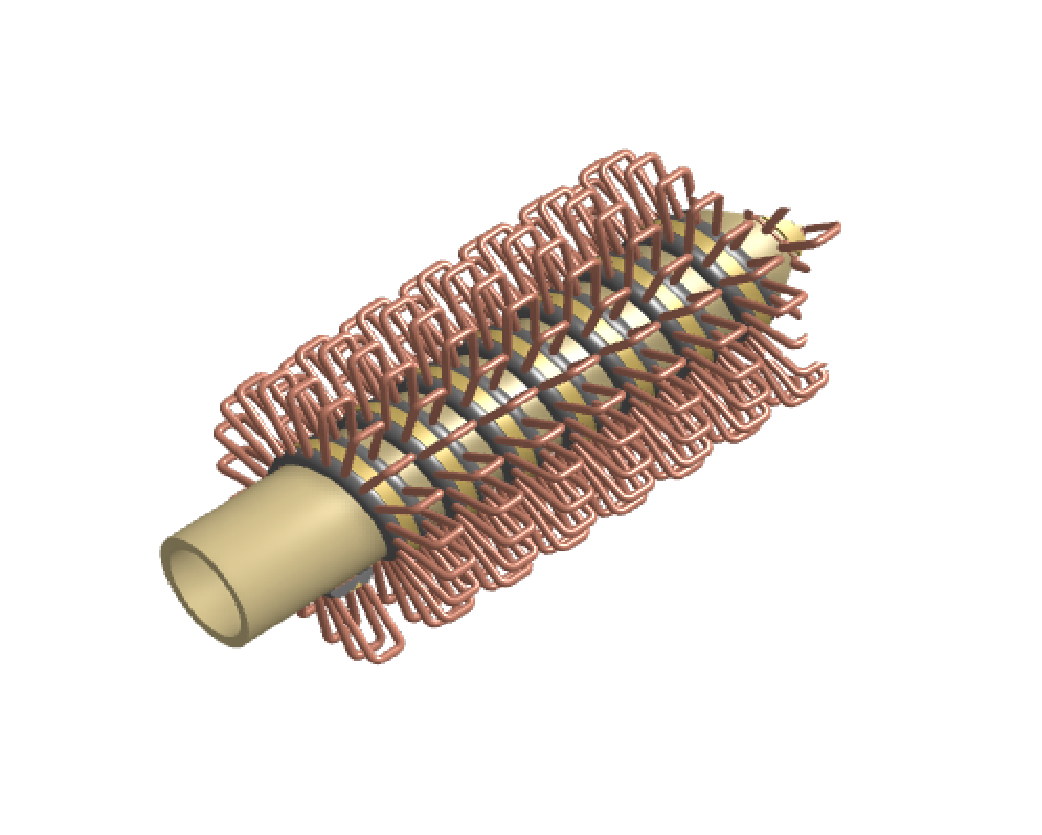

Brass Tube
Specification

  • CZ110 CW702R C68700 Aluminium Brass
  • CZ111 CW706R C44300 Admiralty Brass
  • All other specifications can be quoted.

Fin Specification

  • Copper Wire C101 CU-ETP DIN EN 13602/07.02
  • 0.711 mm (22 swg) Diameter
  • Solder Bonded
  • Maximum Temperature 180° Deg C (240° Deg Hi Temp Solder)
  • Minimum Temperature -40° Deg C

My Image
Fin Height
Description for the chart goes here
250
3.00
vertical_align_bottom Min
23.00
vertical_align_top Max
My Image
Tube Diameter
Description for the chart goes here
600
6.00
vertical_align_bottom Min
50.40
vertical_align_top Max
Tube Wall Thickness
Description for the chart goes here
40
0.51
vertical_align_bottom Min
3.66
vertical_align_top Max
My Image
Tube length
Description for the chart goes here
100
9.00
vertical_align_top Maximum Length
My Image

Titanium Tube
Specification

  • Grade 2 ASTM B337/338
  • Seamless or Welded tube.
  • All other specifications can be quoted.

Fin Specification

  • Copper Wire C101 CU-ETP DIN EN 13602/07.02
  • 0.711 mm (22 swg) Diameter
  • Resin Bonded
  • Maximum Temperature 180° Deg C
  • Minimum Temperature -10° Deg C

My Image
Fin Height
Description for the chart goes here
250
3.00
vertical_align_bottom Min
23.00
vertical_align_top Max
My Image
Tube Diameter
Description for the chart goes here
600
6.00
vertical_align_bottom Min
50.40
vertical_align_top Max
Tube Wall Thickness
Description for the chart goes here
40
0.51
vertical_align_bottom Min
3.66
vertical_align_top Max
My Image
Tube length
Description for the chart goes here
100
9.00
vertical_align_top Maximum Length
My Image

Monel 400 Tube
Specification

  • ASTM B165 – N04400
  • Seamless or Welded tube.
  • All other specifications can be quoted.

Fin Specification

  • Copper Wire C101 CU-ETP DIN EN 13602/07.02
  • 0.711 mm (22 swg) Diameter
  • Resin Bonded
  • Maximum Temperature 180° Deg C
  • Minimum Temperature -10° Deg C

My Image
Fin Height
Description for the chart goes here
250
3.00
vertical_align_bottom Min
23.00
vertical_align_top Max
My Image
Tube Diameter
Description for the chart goes here
600
6.00
vertical_align_bottom Min
50.40
vertical_align_top Max
Tube Wall Thickness
Description for the chart goes here
40
0.51
vertical_align_bottom Min
3.66
vertical_align_top Max
My Image
Tube length
Description for the chart goes here
100
9.00
vertical_align_top Maximum Length

Aluminium Fin

My Image

Aluminium
Tube Specification

  • BSEN755 6063T6
  • All other specifications can be quoted.

Fin Specification

  • Aluminium Wire 1070A H18. BS EN 1301
  • 0.711 mm (22 swg) Diameter
  • Resin Bonded
  • Maximum Temperature 180° Deg C
  • Minimum Temperature -10° Deg C

My Image
Fin Height
Description for the chart goes here
250
3.00
vertical_align_bottom Min
23.00
vertical_align_top Max
My Image
Tube Diameter
Description for the chart goes here
600
6.00
vertical_align_bottom Min
50.40
vertical_align_top Max
Tube Wall Thickness
Description for the chart goes here
40
0.51
vertical_align_bottom Min
3.66
vertical_align_top Max
My Image
Tube length
Description for the chart goes here
100
9.00
vertical_align_top Maximum Length
My Image

Copper Tube
Specification

  • C106 CW024A Cu-DHP C12200
  • Seamless
  • All other specifications can be quoted.

Fin Specification

  • Aluminium Wire 1070A H18. BS EN 1301
  • 0.711 mm (22 swg) Diameter
  • Resin Bonded
  • Maximum Temperature 180° Deg C
  • Minimum Temperature -10° Deg C

My Image
Fin Height
Description for the chart goes here
250
3.00
vertical_align_bottom Min
23.00
vertical_align_top Max
My Image
Tube Diameter
Description for the chart goes here
600
6.00
vertical_align_bottom Min
50.40
vertical_align_top Max
Tube Wall Thickness
Description for the chart goes here
40
0.51
vertical_align_bottom Min
3.66
vertical_align_top Max
My Image
Tube length
Description for the chart goes here
100
9.00
vertical_align_top Maximum Length
My Image

Titanium Tube
Specification

  • Grade 2 ASTM B337/338
  • Seamless or Welded tube.
  • All other specifications can be quoted.

Fin Specification

  • Aluminium Wire 1070A H18. BS EN 1301
  • 0.711 mm (22 swg) Diameter
  • Resin Bonded
  • Maximum Temperature 180° Deg C
  • Minimum Temperature -10° Deg C

My Image
Fin Height
Description for the chart goes here
250
3.00
vertical_align_bottom Min
23.00
vertical_align_top Max
My Image
Tube Diameter
Description for the chart goes here
600
6.00
vertical_align_bottom Min
50.40
vertical_align_top Max
Tube Wall Thickness
Description for the chart goes here
40
0.51
vertical_align_bottom Min
3.66
vertical_align_top Max
My Image
Tube length
Description for the chart goes here
100
9.00
vertical_align_top Maximum Length

Stainless Steel Fin

My Image

Stainless Steel Tube Specification

  • 304/304L S30400/3 EN14301/7
  • 316/316L S31600/3 EN 14401/04
  • Seamless or Welded tube.
  • All other specifications can be quoted.

Fin Specification

  • Stainless Steel DTA 189A
  • 0.711 mm (22 swg) Diameter
  • Solder Bonded
  • Maximum Temperature 180° Deg C (240° Deg Hi Temp Solder)
  • Minimum Temperature -40° Deg C

My Image
Fin Height
Description for the chart goes here
250
3.00
vertical_align_bottom Min
23.00
vertical_align_top Max
My Image
Tube Diameter
Description for the chart goes here
600
6.00
vertical_align_bottom Min
50.40
vertical_align_top Max
Tube Wall Thickness
Description for the chart goes here
40
0.51
vertical_align_bottom Min
3.66
vertical_align_top Max
My Image
Tube length
Description for the chart goes here
100
9.00
vertical_align_top Maximum Length
My Image

Copper Nickel Tube Specification

  • 90/10 Cu/Ni CW352H C70600
  • 70/30 Cu/Ni CW354H C71500
  • Seamless
  • All other specifications can be quoted.

Fin Specification

  • Stainless Steel DTA 189A
  • 0.711 mm (22 swg) Diameter
  • Solder Bonded
  • Maximum Temperature 180° Deg C (240° Deg Hi Temp Solder)
  • Minimum Temperature -40° Deg C

My Image
Fin Height
Description for the chart goes here
250
3.00
vertical_align_bottom Min
23.00
vertical_align_top Max
My Image
Tube Diameter
Description for the chart goes here
600
6.00
vertical_align_bottom Min
50.40
vertical_align_top Max
Tube Wall Thickness
Description for the chart goes here
40
0.51
vertical_align_bottom Min
3.66
vertical_align_top Max
My Image
Tube length
Description for the chart goes here
100
9.00
vertical_align_top Maximum Length
My Image

Titanium Tube
Specification

  • Grade 2 ASTM B337/338
  • Seamless or Welded tube.
  • All other specifications can be quoted.

Fin Specification

  • Stainless Steel DTA 189A
  • 0.711 mm (22 swg) Diameter
  • Resin Bonded
  • Maximum Temperature 180° Deg C
  • Minimum Temperature -10° Deg C

My Image
Fin Height
Description for the chart goes here
250
3.00
vertical_align_bottom Min
23.00
vertical_align_top Max
My Image
Tube Diameter
Description for the chart goes here
600
6.00
vertical_align_bottom Min
50.40
vertical_align_top Max
Tube Wall Thickness
Description for the chart goes here
40
0.51
vertical_align_bottom Min
3.66
vertical_align_top Max
My Image
Tube length
Description for the chart goes here
100
9.00
vertical_align_top Maximum Length
Stacks Image 7_268_7
Stacks Image 7_268_9
Stacks Image 7_268_11
Stacks Image 7_268_13
Stacks Image 7_268_15
Stacks Image 7_268_17
Stacks Image 7_268_19
Stacks Image 7_268_21
Stacks Image 7_268_23
Stacks Image 7_268_25
Stacks Image 7_268_27
Stacks Image 7_268_29

Universities and Government Agencies P.A.K Engineering Ltd have collaborated with.

Newsletter

Keep in touch for our latest developments.

Quality

P.A.K Engineering Ltd is an accredited ISO 9001:2015 company.

My Image

Contact

location_on
Unit 3 Mic Close
Tamworth
B77 4DR
phone
01827 66638
Mon - Fri 8:00 - 16:30

© 2021 P.A.K Engineering Ltd Designer. All Rights Reserved
